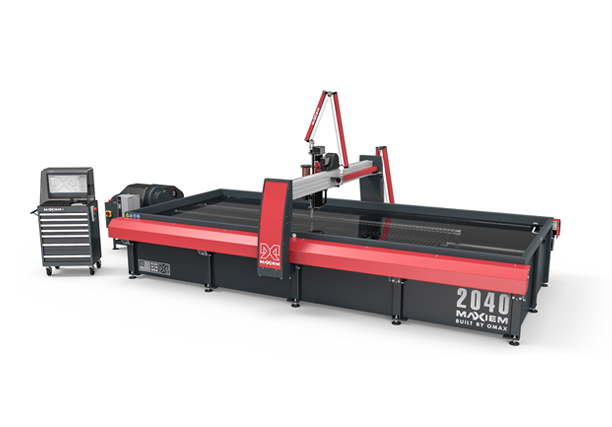

MAXIEM® 2040 JetMachining® Center

The next generation MAXIEM® 2040 JetMachining® Center sets a new standard for abrasive waterjet machining. Faster, smoother, and more precise, the MAXIEM 2040 is ideal for a wide range of modern machining needs. The exclusive advanced Intelli-TRAX® digital linear encoder provides one-micron resolution instant feedback to the motor control system so the machine knows precisely where the cutting head is at all times. The mobile control station with widescreen display provides flexibility in controller positioning. Optional accessories such as the A-Jet® for 5-axis cutting and taper compensation and Rapid Water Level Control for submerged cutting expand your JetMachining capabilities and dramatically improve production.

Inquiry

Fast cutting speeds and high precision that is backed by our exclusive Intelli-MAX® Software with real world cutting data
Programmable Motorized Z-Axis with a precision OMAX MAXJET®5i Nozzle boosts productivity and process efficiency
Drive system protected against water, dirt, and grit
Powerful all-in-one controller computer with large 23" screen
Highly efficient, industry-proven direct drive pumps available up to 40 hp with operating efficiencies up to 85%
Free Intelli-VISOR® SE System Monitoring simplifies routine maintenance planning to minimize downtime
Optional Rapid Water Level Control for quiet submerged cutting
Optional Bulk Abrasive Feed Assembly transports garnet from the assembly’s large hopper into the Zero Downtime Hopper located at the Programmable Motorized Z-Axis
Optional Variable Speed Solids Removal System (VS-SRS) designed for industrial use increases uptime through automated solids removal
Factory tested as a complete system before shipping
Machines a wide range of materials and thicknesses, from metals and composites to glass and plastics
Designed and manufactured at the OMAX factory in Kent, Washington, USA
Does not create heat-affected zones or mechanical stresses
No tool changes & minimal fixturing dramatically reduce setup
Convenient controller storage drawers keep essential tools and spares close by to maintain machine uptime
Uses substantially less cooling water than inefficient hydraulic intensifier pumps
Small, efficient footprint for minimal floor space utilization
Lowest electrical consumption compared to other pump technology
Leaves behind a satin-smooth edge, reducing secondary operations
No noxious fumes, liquid or oils used in, or caused by, the machining process
Environmentally "green" system uses only natural garnet abrasive and water in the cutting process

Machine Dimensions
Footprint (with controller)	18’0” x 12’2” (5,486 mm x 3,708 mm)
Weight (tank empty)	5,500 lb (2,495 kg)
Height	8’10” (2,692 mm)
Operating Weight (with water in tank)	26,400 lb (11,975 kg)
Work Envelope
X-Y Cutting Travel	13’10” x 6’7” (4,216 mm x 2,007 mm)
Z-Axis Travel	12” (305 mm)
Table Size	16’1” x 7’0” (4,902 mm x 2,134 mm)
Drive Description
Brushless servo motors Stainless steel hardened precision ground shaft ways Real-time closed loop feedback with digital drives Bridge-style Y-Axis Intelli-TRAX drive technology with precision linear encoders Precision Programmable Motorized Z-Axis
Standard Model Specifications
Material Support Slats	40 4" x 14Ga Galvanized Steel (102 mm x 2 mm)
Maximum Supported Material Load	300 lbs/sq ft (1,465 kg/sq meter)
Electrical Requirements	3-Phase, 380-480 VAC ±10%, 50-60 Hz
Speed	500 in/min (12,700 mm/min)
Linear Positional Accuracy	±0.003" (±0.076 mm)
Repeatability	±0.001" (±0.025mm)
Optional Accessories
A-Jet 5-Axis Cutting Head with Smart Taper Control Rapid Water Level Control for submerged cutting Intelli-VISOR EX Monitoring Expansion Package OMAX Mini MAXJET 5i Nozzle 7/15 Mini MAXJET5 Nozzle Bulk Abrasive Delivery Assembly Terrain Follower/A-Jet Collision Sensing Terrain Follower Manual Tilt Z-Axis Large Solids Removal System Material Holding Kit Waterjet Brick Kit Extended Slat Package Bridge-mounted Pause Button and USB Port Additional Seats of Intelli-MAX Software Suite Variable Speed Solids Removal System (VS-SRS) Water-only MAXJET 5 Nozzle Laser Feature Finder Z-Axis Pneumatic Drill Splash Shield Kit Water Resistant Keyboard and Mouse Access Control Circuit Interface for safety interlocks Catcher Tank Armor Plating Laminar Filter Air and Water Conditioning Kit Water Recycling System (see more...)
*Optional accessories may reduce cutting travel. Photos may show optional accessories. For a complete list of accessories, contact an OMAX sales representative. Accuracy specifications are at 72° F (22° C) Pumps are built to meet UL and CE specifications. Contact OMAX for detailed utility requirements.
