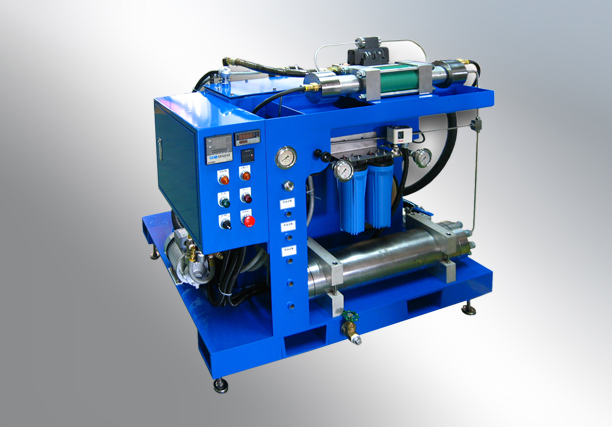

| With Cover | Without Cover |
 |
 |
Intensifier Parts
| Model | 5060 i | |||
|---|---|---|---|---|
| Type | Intensifier (20:1) | |||
| Maximum Operating Pressure | 4,130 bar / 60,000 psi | |||
| Maximum Flow Rate | 3.79 lpm / 1.0 gpm | |||
| Hydraulic Pump | 126 lpm (33 gpm) | |||
| Max Hydraulic Pressure | 210 bar (3,000 psi) | |||
| Reservoir | 165 liter (44 gallon) | |||
| Inlet Water Pressure | 2.5 bar – 8 bar (36.3 psi - 116.0 psi) | |||
| Max Single Orifice Diameter (@ full pressure) | 0.33 mm (0.013”) | |||
 |
 |
|||
| Short block, Intensifier | Attenuator | |||
| Part Number | 700329 | Part Number | 700404 | |
| Max Pressure | 4,138 bar (60,000 psi) | Max Pressure | 4,138 bar (60,000 psi) | |
| Max Flow Rate | 4.55 lpm (1.2 gpm) | Volume | 2 litre | |
| Weight | 48.0 kg (105.8 lbs) | Weight | 134 kg (295.4 lbs) | |
