MAXIEM 3060 Abrasive Water Jet Cutter Machine

MAXIEM 3060 JetMachining Center

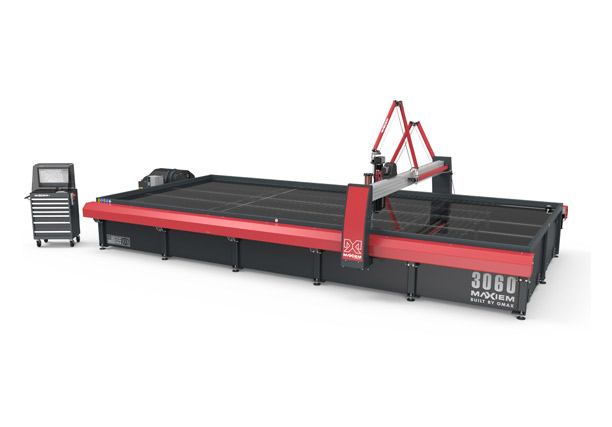

The next generation MAXIEM® 3060 JetMachining® Center sets a new standard for abrasive waterjet machining. Faster, smoother, and more precise, the MAXIEM 3060 is ideal for a wide range of modern large format machining needs. The exclusive advanced Intelli-TRAX® digital linear encoder provides one-micron resolution instant feedback to the motor control system so the machine knows precisely where the cutting head is at all times. The mobile control station with widescreen display provides flexibility in controller positioning. Optional accessories such as the A-Jet® for 5-axis cutting and taper compensation and Collision Sensing Terrain Follower for accurate machining of warped materials expand your JetMachining capabilities and dramatically improve production.

Inquiry
  • Fast cutting speeds and high precision that is backed by our exclusive Intelli-MAX® Software with real world cutting data
  • Programmable Motorized Z-Axis with a precision OMAX MAXJET®5i Nozzle boosts productivity and process efficiency
  • Drive system protected against water, dirt, and grit
  • Powerful all-in-one controller computer with large 23" screen
  • Highly efficient, industry-proven direct drive pumps available up to 40 hp with operating efficiencies up to 85%
  • Free Intelli-VISOR® SE System Monitoring simplifies routine maintenance planning to minimize downtime
  • Optional Rapid Water Level Control for quiet submerged cutting
  • Optional Bulk Abrasive Feed Assembly transports garnet from the assembly’s large hopper into the Zero Downtime Hopper located at the Programmable Motorized Z-Axis
  • Optional Variable Speed Solids Removal System (VS-SRS) designed for industrial use increases uptime through automated solids removal
  • Factory tested as a complete system before shipping
  • Machines a wide range of materials and thicknesses, from metals and composites to glass and plastics
  • Designed and manufactured at the OMAX factory in Kent, Washington, USA
  • Does not create heat-affected zones or mechanical stresses
  • No tool changes & minimal fixturing dramatically reduce setup
  • Convenient controller storage drawers keep essential tools and spares close by to maintain machine uptime
  • Uses substantially less cooling water than inefficient hydraulic intensifier pumps
  • Small, efficient footprint for minimal floor space utilization
  • Lowest electrical consumption compared to other pump technology
  • Leaves behind a satin-smooth edge, reducing secondary operations
  • No noxious fumes, liquid or oils used in, or caused by, the machining process
  • Environmentally “green” system uses only natural garnet abrasive and water in the cutting process
Machine Dimensions
Footprint (with controller) 24’6” x 15’8” (7,468 mm x 4,775 mm)
Weight (tank empty) 8,700 lb (3,946 kg)
Height 9’6” (2,896 mm)
Operating Weight
(with water in tank)		 53,000 lb (24,040 kg)
Work Envelope
X-Y Cutting Travel 20’6” x 10’2” (6,248 mm x 3,099 mm)
Z-Axis Travel 12” (305 mm)
Table Size 22’9” x 10’8” (6,934 mm x 3,251 mm)
Drive Description
  • Brushless servo motors
  • Stainless steel hardened precision ground shaft ways
  • Real-time closed loop feedback with digital drives
  • Bridge-style Y-Axis
  • Intelli-TRAX drive technology with precision linear encoders
  • Precision Programmable Motorized Z-Axis
Standard Model Specifications
Material Support Slats 60 4" x 14Ga Galvanized Steel (102 mm x 2 mm)
Maximum Supported Material Load 300 lbs/sq ft (1,465 kg/sq meter)
Electrical Requirements 3-Phase, 380-480 VAC ±10%, 50-60 Hz
Speed 500 in/min (12,700 mm/min)
Linear Positional Accuracy ±0.003” (±0.076 mm)
Repeatability ±0.001" (±0.025mm)
Optional Accessories
  • A-Jet 5-Axis Cutting Head with Smart Taper Control
  • Rapid Water Level Control for submerged cutting
  • Intelli-VISOR EX Monitoring Expansion Package
  • OMAX Mini MAXJET 5i Nozzle
  • 7/15 Mini MAXJET5 Nozzle
  • Bulk Abrasive Delivery Assembly
  • Terrain Follower/A-Jet
  • Collision Sensing Terrain Follower
  • Manual Tilt Z-Axis
  • Large Solids Removal System
  • Material Holding Kit
  • Waterjet Brick Kit
  • Extended Slat Package
  • Additional Seats of Intelli-MAX Software Suite
  • Variable Speed Solids Removal System (VS-SRS)
  • Water-only MAXJET 5 Nozzle
  • Laser Feature Finder
  • Z-Axis Pneumatic Drill
  • Splash Shield Kit
  • Water Resistant Keyboard and Mouse
  • Access Control Circuit Interface for safety interlocks
  • Catcher Tank Armor Plating
  • Laminar Filter
  • Air and Water Conditioning Kit
  • Water Recycling System
  • Bridge-mounted Pause Button and USB Port

     (see more...)
*Optional accessories may reduce cutting travel. Photos may show optional accessories. For a complete list of accessories, contact an OMAX sales representative. Accuracy specifications are at 72° F (22° C) Pumps are built to meet UL and CE specifications. Contact OMAX for detailed utility requirements.
