OMAX A-Jet

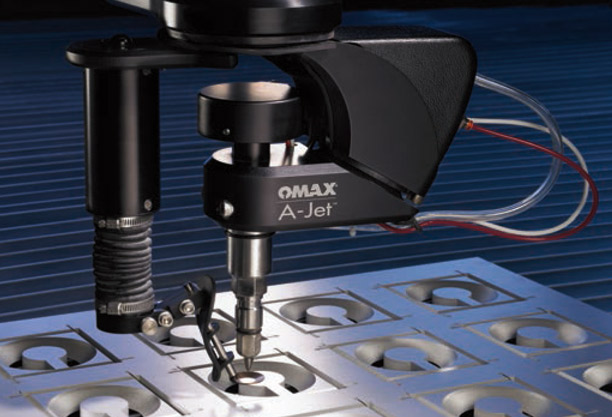

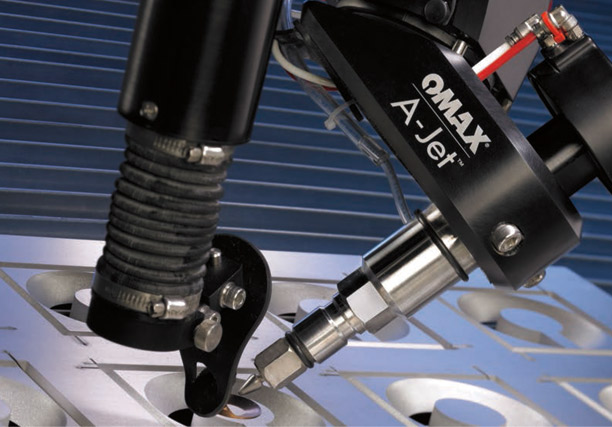

The patent-pending A-Jet® is a complete software-controlled, multi-axis accessory that features the flexibility to automatically compensate for taper, as well as cut severe angles up to 60° off vertical. The A-Jet cuts countersunk holes and precision shapes with beveled edges at angles specified by the user. The accessory supplies additional axes of motion, allowing the operator to fabricate and shape metal edges for weld preparation. The dynamic A-Jet is capable of a high level of positioning accuracy, resulting in parts that need no secondary finishing.

Inquiry

Features

Cutting angle ranges from 0° to 60°
Three modes of taper compensation
Supplied with a MAXJET® 5i Nozzle, which includes an OMAX High Angle Fusible Mixing Tube
Designed for high flow/high power abrasive waterjet applications with multiple pumps by using large diameter tubing with minimal pressure loss
Features a fixed focal point design, where the XYZ axes do not need to move as the head tilts

Benefits

Compatible with Precision Optical Locator and Rotary Axis
Faster cutting of high precision taper free parts with no need to slow down to eliminate taper
Servo-controlled programmable precision Z-axis with 6” of travel
Faster cutting due to “tilt forward” capability
Advanced servo design results in virtually zero backlash
Programmable manual tilt up to ±9° for the maximum tilt angle
Automatic taper elimination without any programming

Precise and complex three dimensional parts become a reality with the OMAX A-Jet.	The A-Jet makes cutting bevels simple, and software controls help to eliminate taper.
The Intelli-MAX Software provides full control over the A-Jet, including manual tilt and direction angle input.

3D Functionality
With the A-Jet, 3D parts are now possible on an abrasive waterjet. The continuous precision 5-axis movement of the A-Jet cutting head allows for detailed 3D shapes to be cut from a wide variety of materials. With the combination of the A-Jet and the optional Rotary Axis, the OMAX JetMachining Center becomes even more versatile, allowing for complex and challenging 3D shapes to be cut, such as beveled pipe fittings.
Options
Terrain Follower automatically adjusts to accommodate warped flat plat Rotary Axis allows for complex 6-axis 3D parts and precision beveled pipe fittings 0.030” Fusible Mixing Tube for finer kerf size
Requirements
A bridge-style OMAX JetMachining® Center (for cantilever-style OMAX JetMachining Centers, contact an OMAX sales representative for details) OMAX 9-axis PC-based controller OMAX Intelli-MAX 18 Software Suite or later for taper compensation
Specifications
Positioning Accuracy: ±0.09° (±6 arc minutes) 0.042” High Angle Fusible Mixing Tube standard Z-axis travel: 6” (152mm), up to 8” (203mm) when using shorter table slats in the Catcher Tank
*Using the 0.030” size greatly reduces mixing tube life in exchange for higher precision kerf size.
