Omax Pump Technology
Intelligent OMAX technology and engineering applied the laws of physics to its direct drive pump systems to deliver the highest nozzle horsepower, or JetPower, available, no matter the pressure. Delivering 30% more JetPower to the cutting head compared to the best intensifier pump designs, OMAX Direct Drive Pump Technology cuts faster, smoother, and more efficiently than any other pump technology at any pressure. OMAX designed their Direct Drive Pump Technology to deliver the maximum cutting potential to the cutting head. More power to the cutting head means faster cutting and lower operating costs, resulting in exceptional productivity.

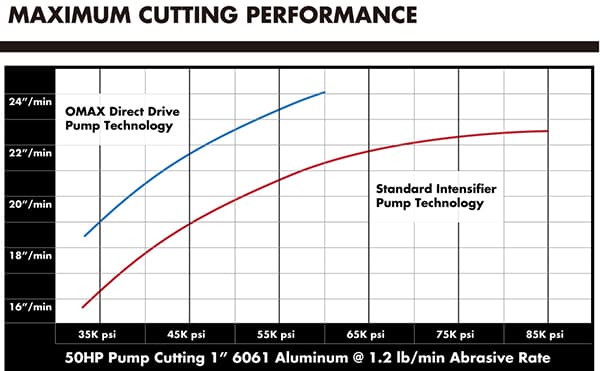

Maximum Cutting Performance of OMAX Direct Drive Pump

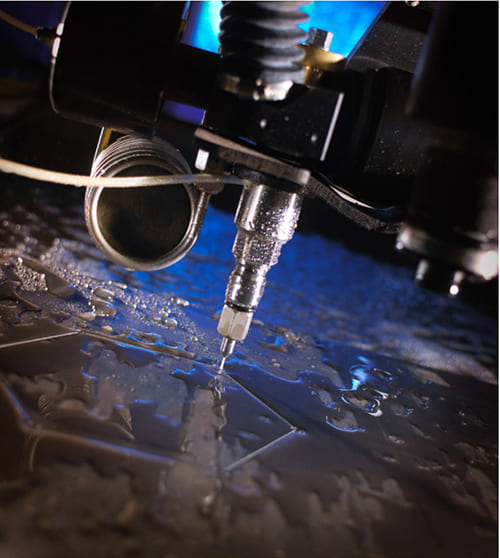

It is the abrasive that does the cutting in abrasive waterjet systems, and the kinetic power of the abrasive is directly related to the hydraulic power of the jet. The more efficient the pump, the more abrasive cutting power, which results in faster cutting. OMAX Direct Drive Pump Technology is the most efficient pump technology, which maximizes your cutting performance.

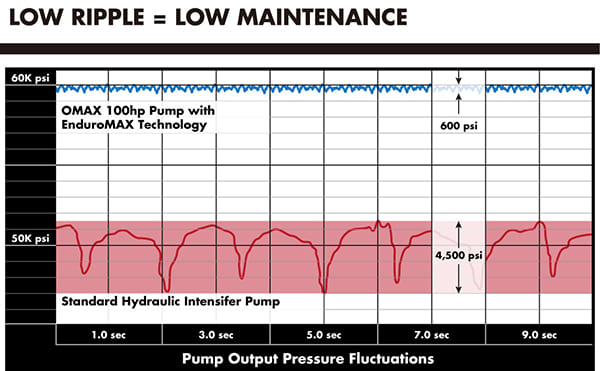

Low Ripple = Low Maintenance of OMAX Direct Drive Pump
Using and maintaining high pressure plumbing is critical to machining production, and a key factor is limiting the pressure fluctuations inherent in pump systems. OMAX direct drive pumps are engineered to minimize this fluctuation with an output that is up to seven times smoother than intensifier pumps. The result is longer system uptime for maximum production.
Omax Pump Technology Omax Pump Technology Omax Pump Technology
Enhanced Vfd Technology

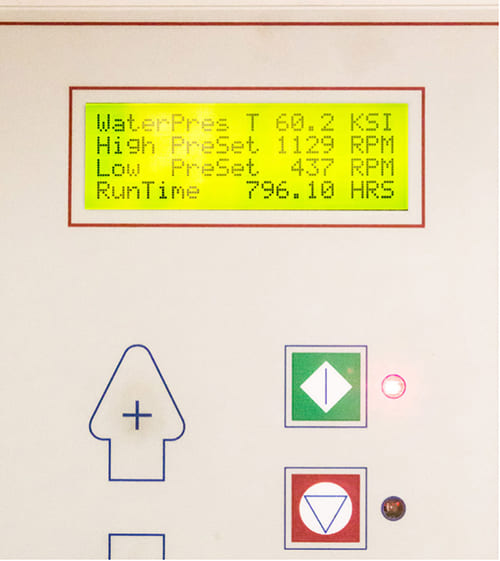

With Variable Frequency Drive technology, OMAX pumps maximize production potential with substantial energy savings by altering the speed of the motor based on demand. With the VFD, OMAX pumps can operate throughout a wide range of motor RPMs, resulting in precise pressure control. Varying the speed and torque of the electric motor reduces wear and tear on the motor and pump crankcase, limiting maintenance overhead. Whether adjusting for low pressure piercing of delicate materials or dialing in pump pressure for maintenance longevity, VFD technology provides the user the flexibility to adapt to their specific needs and requirements.
Enhanced Vfd Technology
Enhanced Vfd Technology
Enhanced Vfd Technology
Enhanced Vfd Technology
  Motor Power
 Maximum Jet Power1 Output Pressure Orifice And Flow Rate2
Protomax3 5 HP (3.7 kW) 4.3 HP (3.2 kW) 30,000 psi 0.008” / 0.25 gpm (0.2mm / 0.95 lpm)

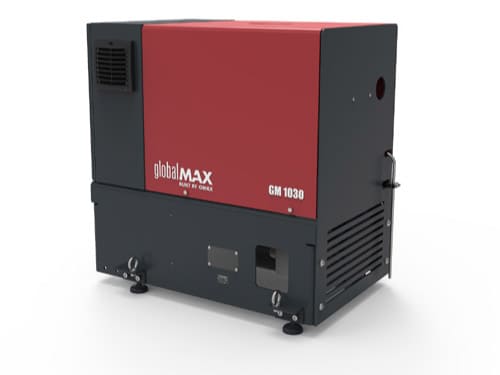

Globalmax 10 HP (7.5 kW) 7 HP (5.2 kW) 0.011” / 0.40 gpm (0.28mm / 1.51 lpm)
20 HP (15 kW) 17 HP (12.5 kW) 45,000 psi 0.012” / 0.62 gpm (0.30mm / 2.35 lpm)
30 HP (22 kW) 25.5 HP (19 kW) 0.015” / 0.96 gpm (0.38mm / 3.63 lpm)

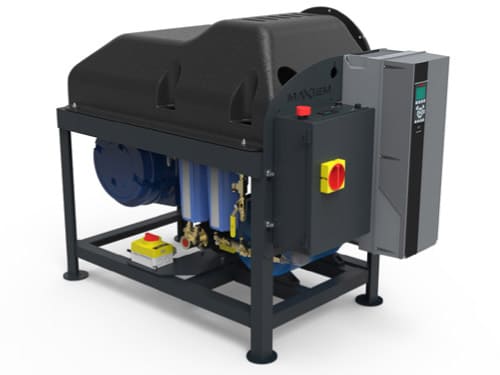

Maxiem 20 HP (15 kW) 17 HP (12.5 kW) 50,000 psi 0.011” / 0.52 gpm (0.28mm / 1.97 lpm)
30 HP (22 kW) 25.5HP (19 kW) 0.014” / 0.84 gpm (0.36mm / 3.18 lpm)
40 HP (30 kW) 34 HP (25 kW) 0.016” / 1.09 gpm (0.41mm / 4.13 lpm)

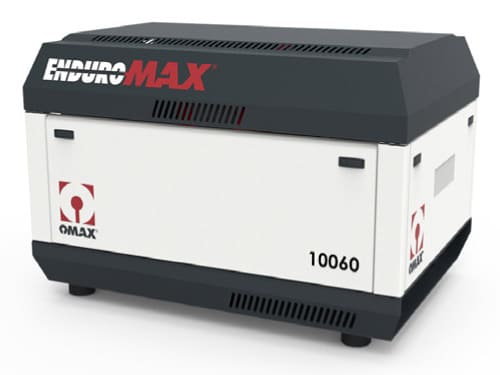

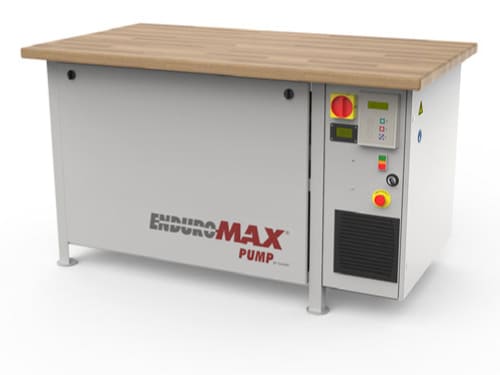

Enduromax4 30 HP (22 kW) 25.5 HP (18.7 kW) 60,000 psi 0.012” / 0.67 gpm (0.30mm / 2.54 lpm)
40 HP (30 kW) 34.0 HP (25.5 kW) 0.014” / 0.92 gpm (0.36mm / 3.48 lpm)
50 HP (37 kW) 42.5 HP (31.5 kW) 0.016” / 1.20 gpm (0.41mm / 4.54 lpm)
100 HP (75 kW) 85 HP (63 kW) 0.022” / 2.25 gpm (0.56 mm / 8.52 Lpm)
Enhanced Vfd Technology
With Variable Frequency Drive technology, OMAX pumps maximize production potential with substantial energy savings by altering the speed of the motor based on demand. With the VFD, OMAX pumps can operate throughout a wide range of motor RPMs, resulting in precise pressure control. Varying the speed and torque of the electric motor reduces wear and tear on the motor and pump crankcase, limiting maintenance overhead. Whether adjusting for low pressure piercing of delicate materials or dialing in pump pressure for maintenance longevity, VFD technology provides the user the flexibility to adapt to their specific needs and requirements.
